Traditional approaches often leave verification activities disconnected across tools, organizations, and handoff points. This reduces visibility, complicates impact analysis, and weakens auditable traceability. It also limits the reuse of valuable knowledge created during verification, especially knowledge captured in failed analyses, rejected architectures, and edge-case scenarios.

Questa One VeriThreader addresses this challenge by enabling a comprehensive digital verification thread built on Verification Capture Points (VCPs), structured coverage artifacts that link parameterized requirements to the verification results, models, context, and configurations. By capturing verification activities across multiple domains and abstraction levels in a common form, VCPs help engineering teams establish measurable verification coverage, improve cross-domain traceability, support formal audit requirements, and better understand the impact of change throughout the lifecycle.

Introduction

Over the past two decades, coverage-driven verification transformed integrated circuit development by giving teams a quantitative way to understand which aspects of a design had been exercised and which verification goals had been achieved. Coverage databases, composed of measures such as functional coverage, code coverage, and assertion coverage, provided an objective way to track progress and identify gaps.

Modern system development requires an equivalent step forward. Today’s products combine hardware, software, electronics, system models, and increasingly sophisticated operational environments. Verification evidence is created at each stage, but too often those results remain confined within individual tools or disciplines. As a result, teams may verify many important things without being able to answer basic cross-domain questions clearly. Such as:

• What has been verified?
• Against which requirement?
• Using which version of which artifact?
• Under what assumptions?
• And what needs to be repeated after a change?

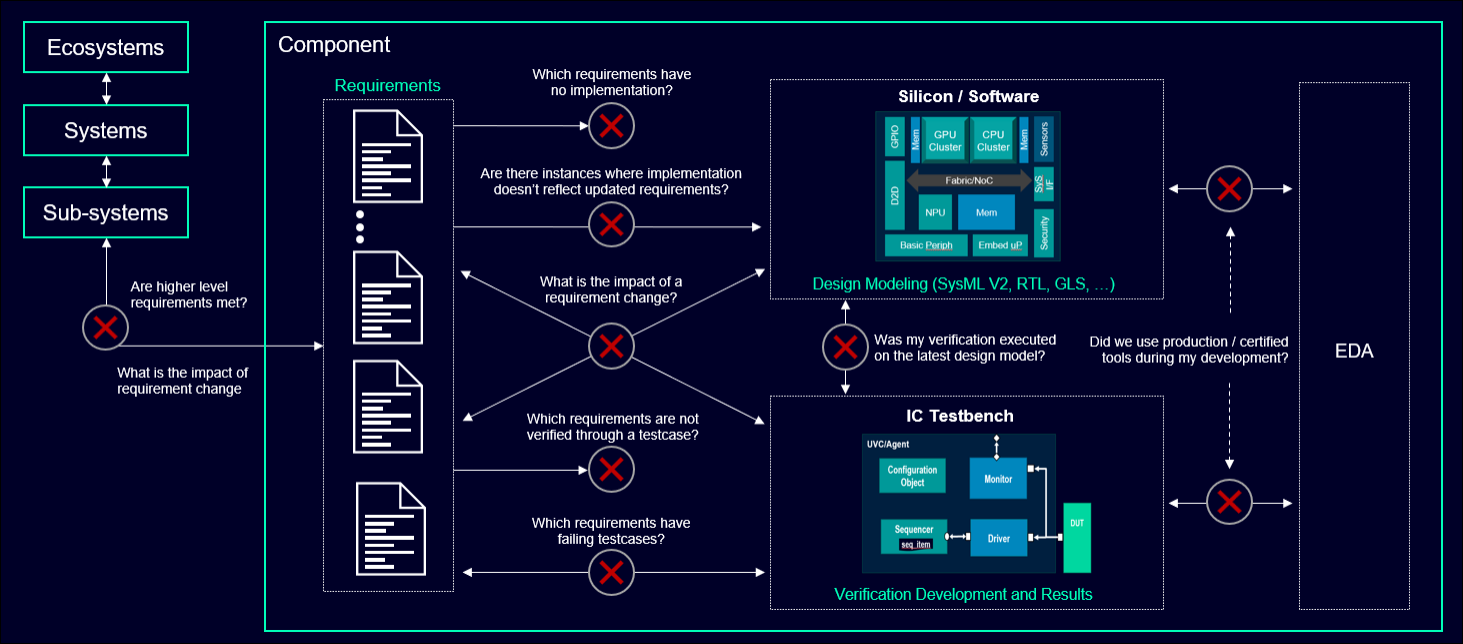

^{Figure 1: The questions that keep engineering teams and leaders up at night}

Questa One VeriThreader is built to address this need. At the heart of its methodology is the Verification Capture Point, a structured mechanism for recording every verification or analysis event that determines whether a design-under-test satisfies a requirement. This creates a true digital verification thread. It enables teams to move beyond static verification reporting toward a reusable body of verification knowledge that can be queried, reviewed, and extended over time. It also helps engineering organizations engineer verification earlier in the lifecycle, making verification a planned design asset rather than a downstream cleanup exercise.

In this way, Questa One VeriThreader extends the benefits of coverage-driven thinking from the IC domain to broader systems and ecosystems verification.
