UVM Class Hierarchy ? can any one help me by giving me the full uvm base class hierarchy structure

UVM
1

@dave_59 @user49 @chr_sue

2

Path to GitHub repo:

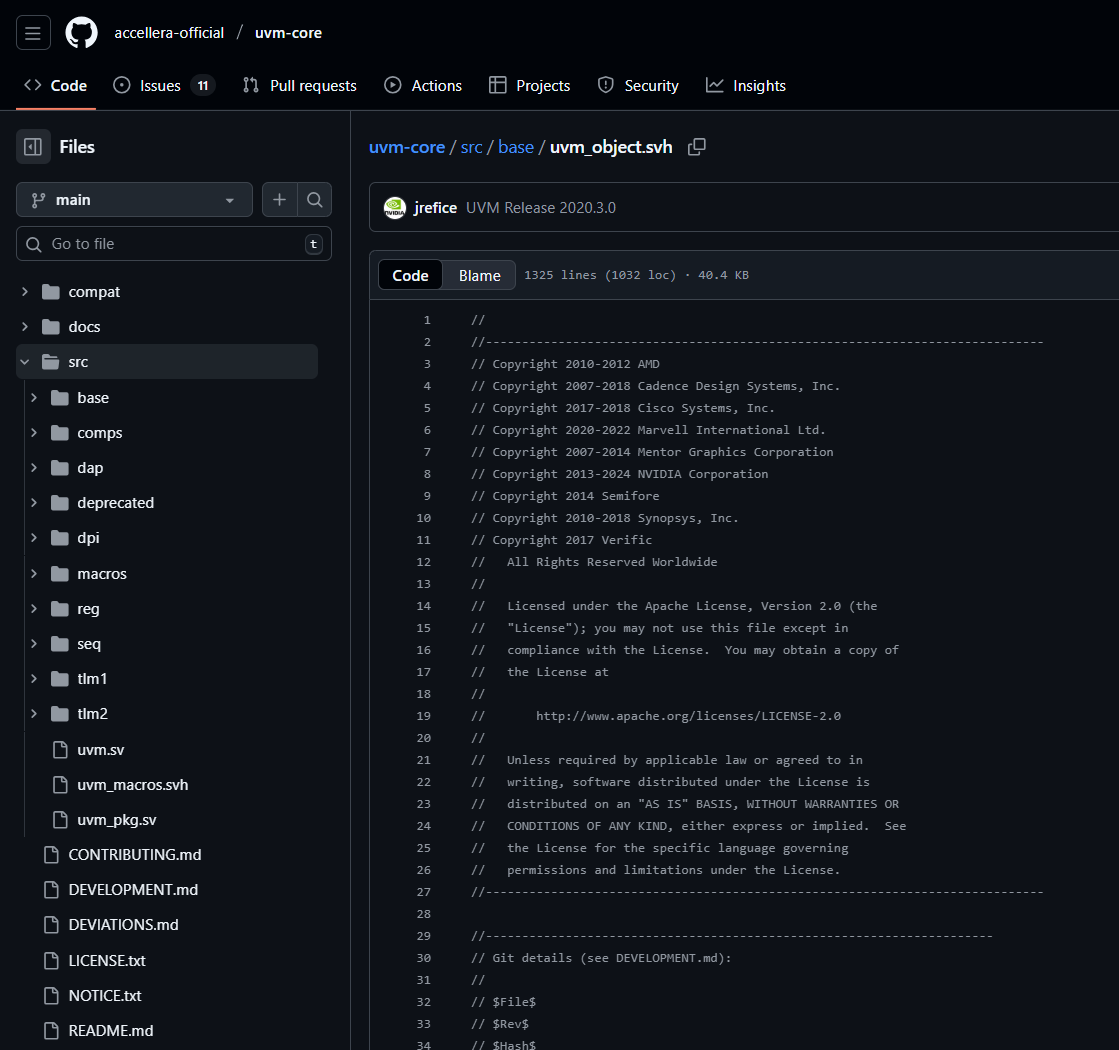

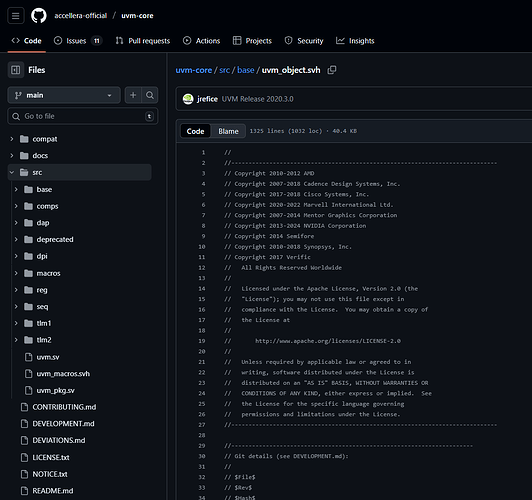

Snapshot of directory structure:

image1119×1050 66.6 KB

1 Like
3

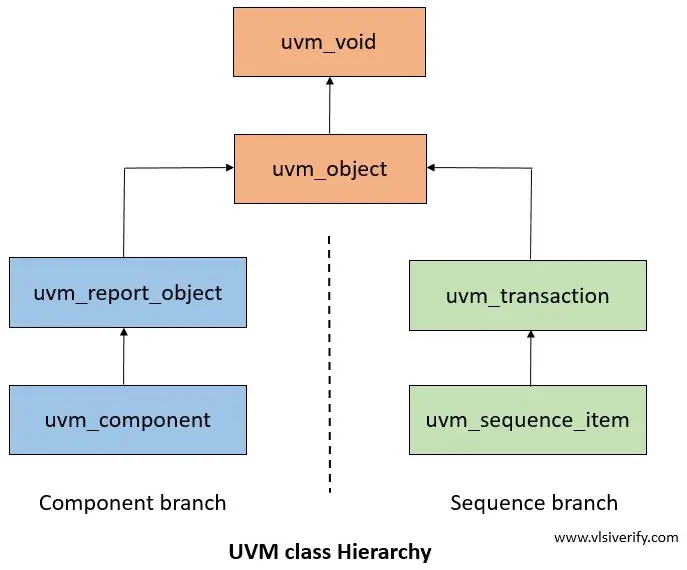

What do you want to see? class organization or a graph displaying the hierarchy?

4

Graph display of hierarchy

5

About 10 years ago there was a company called ‘IntelligentDV’ which was providing a perl-script to extract all the dependencies of the UVM class library and the extended classes and generated dependency trees. It seems this company is not existing any more.

6

Adding few links:

You could also use the Verification academy UVM class documentation.
It also includes inheritance tree for each UVM class, e.g.:

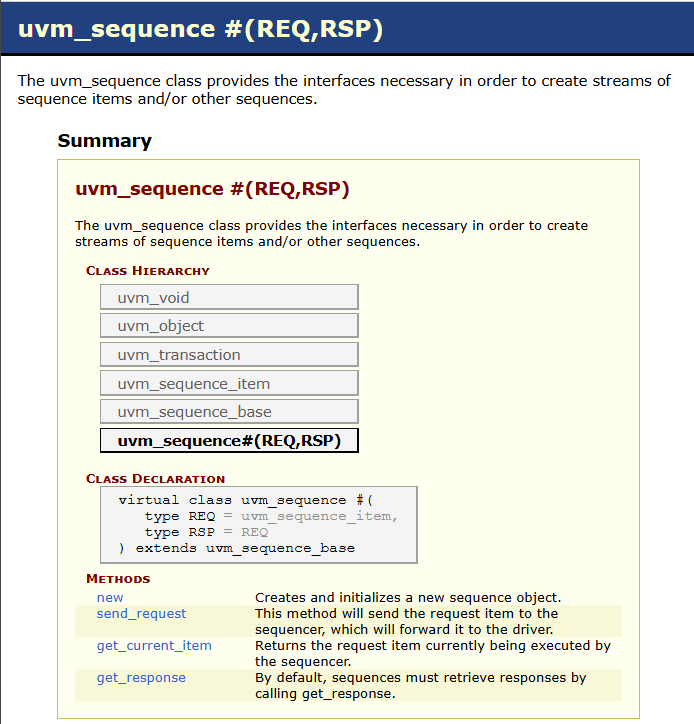

Snapshot of the class inheritance tree:

image694×724 28.4 KB
