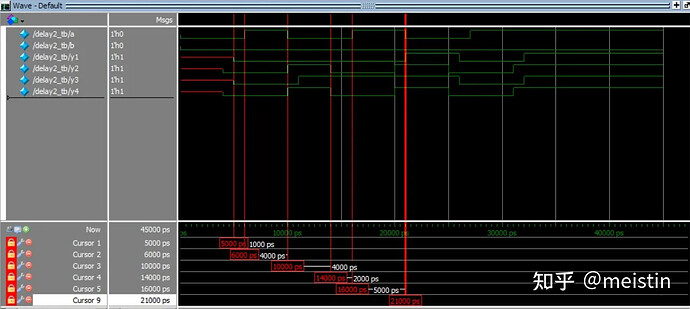

here is the code and waveform:
At 21000ps, is there a race condition for output y1?
Please post your examples as a formatted block of code, not a picture. Use the </> button around highlighted text. A picture is hard to read and retype the text.
Just looking at your code, I see race conditions, but more importantly, your always blocks have inertial blocking delays. That means if a
or b
change faster than the delay, you miss the change and will have to wait for another change.
Your last always
process waits for a change on a
or b
, then evaluates the RHS of the blocking assigment and the blocks the process for 4 time units. After 4 time units, the result get assigned to y4 and the always
process starts waiting for another change on a
or b
. The problem is if a
or b
changes while that process is blocked for 4 time units, the always
misses the change and has to wait for the next change to evaluate the RHS. If a
or b
changes at exactly 4 time units, then it is a race condtion if the always
block gets to see the change or not.
You should never use blocking delays when modeling combinational logic. Use nonblocking assignments.
