Delay one clk cycle when driving at posedge

UVM
1

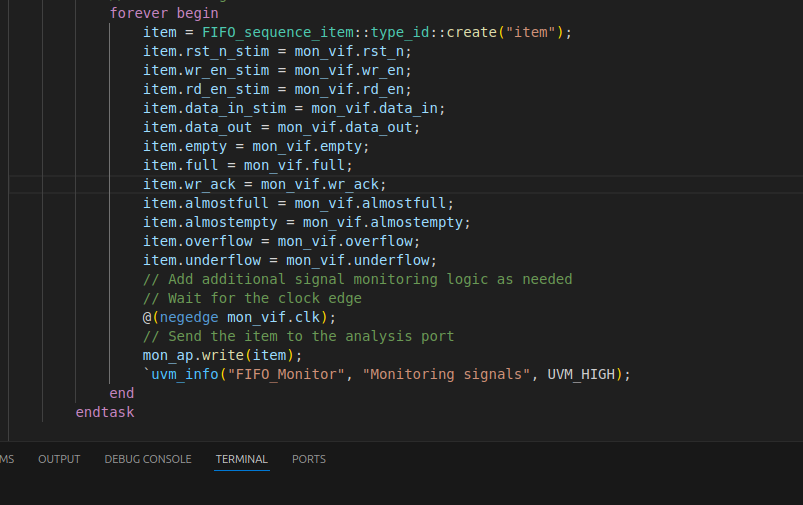

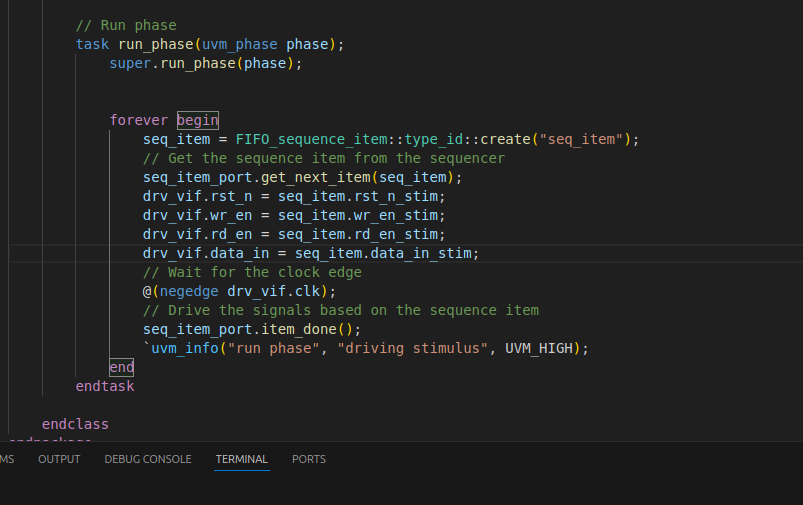

i was working on FIFO UVM and was driving and monitoring at negedge and my scoreboard was giving me that the output is correct but when I changed the driver and monitor to work with @posedge the scoreboard showed that the output captured with monitor is delayed 1 clk cycle from the out_ref of the scoreboard

image803×505 45.5 KB

image803×505 48.5 KB

2

If the DUT and testbench both use @posedege, you have a race condition if your assignments are blocking. Your testbench needs to use non-blocking assignments <= if you want them synchronized to the same edge.

3

thank you for your response.
i tried to make it nonblocking but it still gives me the same behaviour.
will clocking block solve it?

4
  • is it right to drive at negedge to avoid such race conditions or it is standard to drive and monitor at posedge
5

Hard to say without seeing exactly how your DUT signals are being driven. And usually the @() event control is at the top of the forever loop, not in the middle of it. And you would use try_next_item()

forever @(posedge clk)
  if (try_next_item(req)) begin
     // drive interface
     seq_item_port.item_done(req);
  end
