UVMC Converter Example - SV In-Transaction via Field Macros

This example shows a UVM-style transaction that uses the `uvm_field macros to implement the required conversion functionality.

UVMC’s default converter for SV works for these types of transactions. Direct implementation of the do_pack and do_unpack methods are preferred over using the `uvm_field macros because of the performance impact and low debug support associated with these macros. See “Are UVM Macros Evil? A Cost Beneifit Analysis” white paper for detailed analysis of the `uvm_field and other UVM macros.

Summary

UVMC Converter Example - SV In-Transaction via Field Macros
This example shows a UVM-style transaction that uses the `uvm_field macros to implement the required conversion functionality.
User Library	This section defines a transaction class, packet, that indirectly extends uvm_object.
Conversion code	This section is empty because our conversion functionality is built into the transaction type proper.
Testbench code	This section defines our testbench environment.

User Library

This section defines a transaction class, packet, that indirectly extends uvm_object. It also defines a generic producer model via an `include. All transactions and components in the user library should be written to be independent of context, i.e. not assume a UVMC or any other outside connetion.

The `uvm_field macros expand into hundreds of lines of code, perhaps thousands depending on the number and type of fields in your transaction. See the example showing direct implementation of do_pack and do_unpack for a better solution.

package user_pkg;

  `include "uvm_macros.svh"
  import uvm_pkg::*;

  class packet_base extends uvm_sequence_item;

    typedef enum { WRITE, READ, NOOP } cmd_t;

    rand cmd_t cmd;
    rand int   addr;
    rand byte  data[$];

    function new(string name="");
      super.new(name);
    endfunction

    constraint c_data_size { data.size() inside { [1:10] }; }

    `uvm_object_utils_begin(packet_base)
      `uvm_field_enum(cmd_t,cmd,UVM_ALL_ON)
      `uvm_field_int(addr,UVM_ALL_ON)
      `uvm_field_queue_int(data,UVM_ALL_ON)
    `uvm_object_utils_end

    virtual function string convert2string();
      return $sformatf("cmd:%s addr:%h data:%p",cmd,addr,data);
    endfunction

  endclass


  class packet extends packet_base;

    rand int extra_int;

    function new(string name="");
      super.new(name);
    endfunction

    `uvm_object_utils_begin(packet)
      `uvm_field_int(extra_int,UVM_ALL_ON)
    `uvm_object_utils_end

    virtual function string convert2string();
      return $sformatf("%s extra_int:%h",super.convert2string(),extra_int);
    endfunction

  endclass

  `include "producer.sv"

endpackage : user_pkg

Conversion code

This section is empty because our conversion functionality is built into the transaction type proper.

/***  No external conversion code needed  ***/

Testbench code

This section defines our testbench environment. In the env’s build function, we instantiate the generic producer model. In the connect method, we register the producer’s out port for UVMC connection using the lookup string ‘stimulus’. The SC-side will register its consumer’s in port with the same lookup string. UVMC will match these two strings and complete the cross- language connection, i.e. the SV producer’s out port will be bound to the SC consumer’s in export.

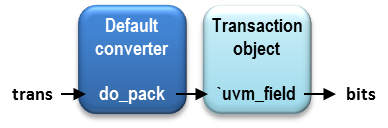

Because our packet class implements the requisite do_pack and do_unpack methods, we can leverage UVMC’s default converter, which delegates to these methods. When making the uvmc_tlm::connect call, we do not need to specify a custom converter type--only the transaction type.

module sv_main;

  `include "uvm_macros.svh"
  import uvm_pkg::*;
  import uvmc_pkg::*;
  import user_pkg::*;

  // Define env with connection specifying custom converter

  class sv_env extends uvm_env;

    producer #(packet) prod;

    `uvm_component_utils(sv_env)

    function new(string name, uvm_component parent=null);
       super.new(name,parent);
    endfunction

    function void build_phase(uvm_phase phase);
       prod = new("prod", this);
    endfunction

    function void connect_phase(uvm_phase phase);
      uvmc_tlm #(packet)::connect(prod.out, "stimulus");
    endfunction

  endclass


  sv_env env;

  initial begin
    env = new("env");
    run_test();
  end

endmodule
