UVMC Connection Example - SC to SV, SC side

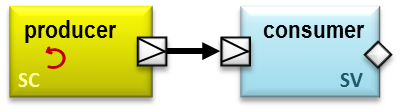

This example shows a SC producer driving a SV consumer via a TLM connection made with UVMC, including how to derive a SC producer subtype that can control UVM phasing using the UVMC Command API. See UVMC Connection Example - SC to SV, SV side to see the SV portion of the example.

In a pure SC simulation, synchronization between a producer and consumer occurs exclusively through the protocol prescribed by the TLM standard. In mixed SC-SV simulation, SC usually elaborates and starts its threads before SV has finished elaborating. To prevent run-time errors, UVMC will block any cross-language access until SV is ready. This means calls to interface methods via SC ports or sockets connected to SV must be made from within SC threads (via the SC_THREAD macro or sc_spawn).

Blocking until SV is ready technically violates TLM non-blocking semantics. It was deemed more useful to hold back activity from all cross-language calls rather than reject all non-blocking calls until SV was ready. Future releases may provide an option to return immediately with 0 status from non-blocking calls.

When a UVM testbench is sitting on the SV side, you must also consider UVM’s phasing semantics, which says that a phase will end if there are no objections raised to its ending. When, as in this example, there is a SC-side participant to UVM phase control, an objection will need to be raised from the SC side for the phase(s) in which the SC side actively participates. The producer, in other words, must use the UVMC Command API to raise and drop the objection that corresponds to the phase in which it is generating stimulus. If it does not, then UVM (SV) will end that phase and likely end simulation before the SC producer has had a chance to emit the first transaction.

To preserve reuse, it is recommended that the UVM Command API usage be relegated to a subtype of the native SC producer. This way, you do not couple the producer’s primary functionality (producing transactions) with cross-language synchronization issues and UVMC.

Summary

UVMC Connection Example - SC to SV, SC side
This example shows a SC producer driving a SV consumer via a TLM connection made with UVMC, including how to derive a SC producer subtype that can control UVM phasing using the UVMC Command API.
UVM-aware SC producer	This example defines the producer_uvm class, which derives from our generic SC producer.
sc_main	The sc_main function below creates and starts the SC portion of this example.

UVM-aware SC producer

This example defines the producer_uvm class, which derives from our generic SC producer. In it, we spawn a dynamic objector thread that calls uvmc_raise_objection to UVM’s run phase. This keeps simulation alive on the SV side while the base producer in SC generates stimulus.

When the base producer is finished generating stimulus, it will notify a done sc_event. The objector thread in this producer_uvm wakes up on that event notification and drops its objection using uvmc_drop_objection. This allows UVM simulation to proceed to the next phase and eventually complete simulation.

#include "uvmc.h"
using namespace uvmc;

#include "producer.h"

class producer_uvm : public producer {

  public:

  producer_uvm(sc_module_name nm) : producer(nm) {
    SC_THREAD(objector);
  }

  SC_HAS_PROCESS(producer_uvm);

  void objector() {
    uvmc_raise_objection("run");
    wait(done);
    uvmc_drop_objection("run");
  }

};

sc_main

The sc_main function below creates and starts the SC portion of this example. It does the following:

Instantiates a basic producer
Registers the producer’s in port with UVMC using the lookup string “42”. During elaboration, UVMC will connect this port with a port registered with the same lookup string. In this example, the match will occur with a consumer’s in port on the SV side.
Calls sc_start to start SystemC

int sc_main(int argc, char* argv[])
{
  producer_uvm prod("producer");
  uvmc_connect(prod.out,"42");
  sc_start(-1);
  return 0;
}
